Case/Gig Bag
Optional SLAT 7/8 String Gig Bag (p/n 299-1513-106)
Saddle Height Wrench
Yes
Truss Rod Wrench
Yes
Sale
X Series Dinky® Arch Top DKAF8 MS
X Series Dinky® Arch Top DKAF8 MS
Model #:
2916183503
Regular price
10,499.00 kr
Regular price
10,499.00 kr
10,499.00 kr
Sale price
Unit price
per
2% Off
inc. VAT*
Couldn't load pickup availability

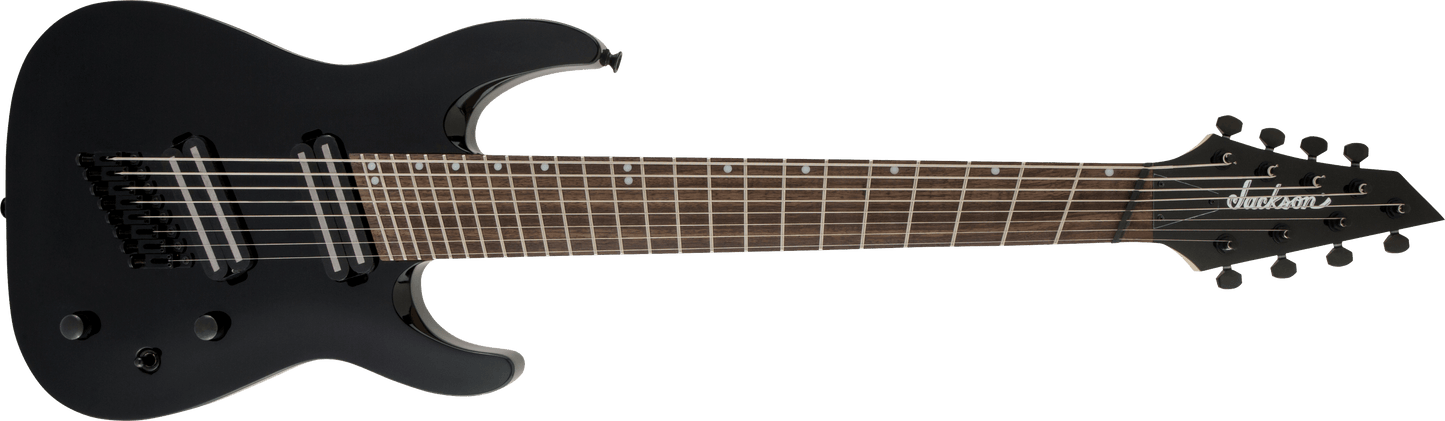

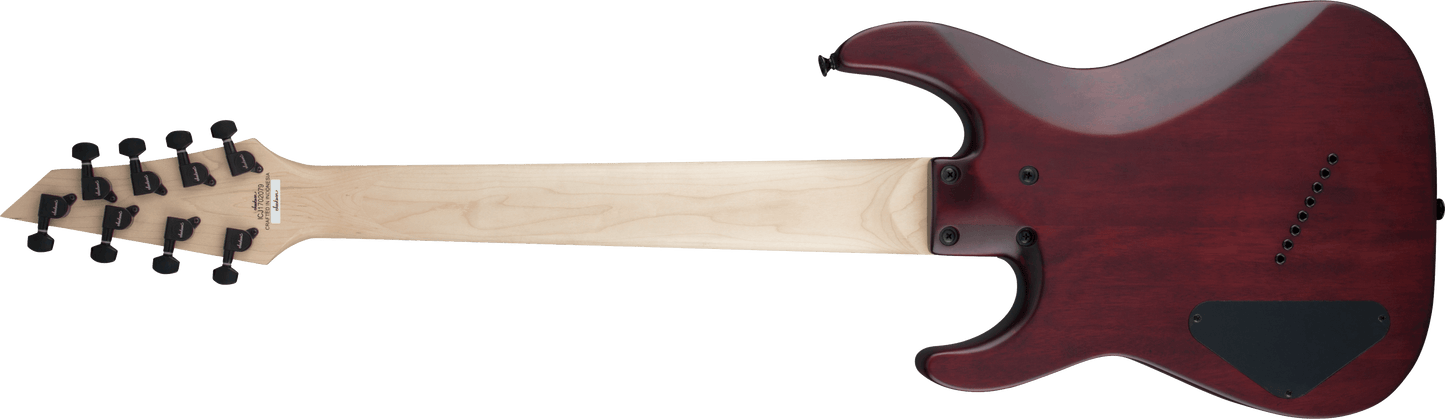

X Series Dinky® Arch Top DKAF8 MS
Regular price
10,499.00 kr
Regular price
10,499.00 kr
10,499.00 kr
Sale price
Unit price
per
2% Off
Overview

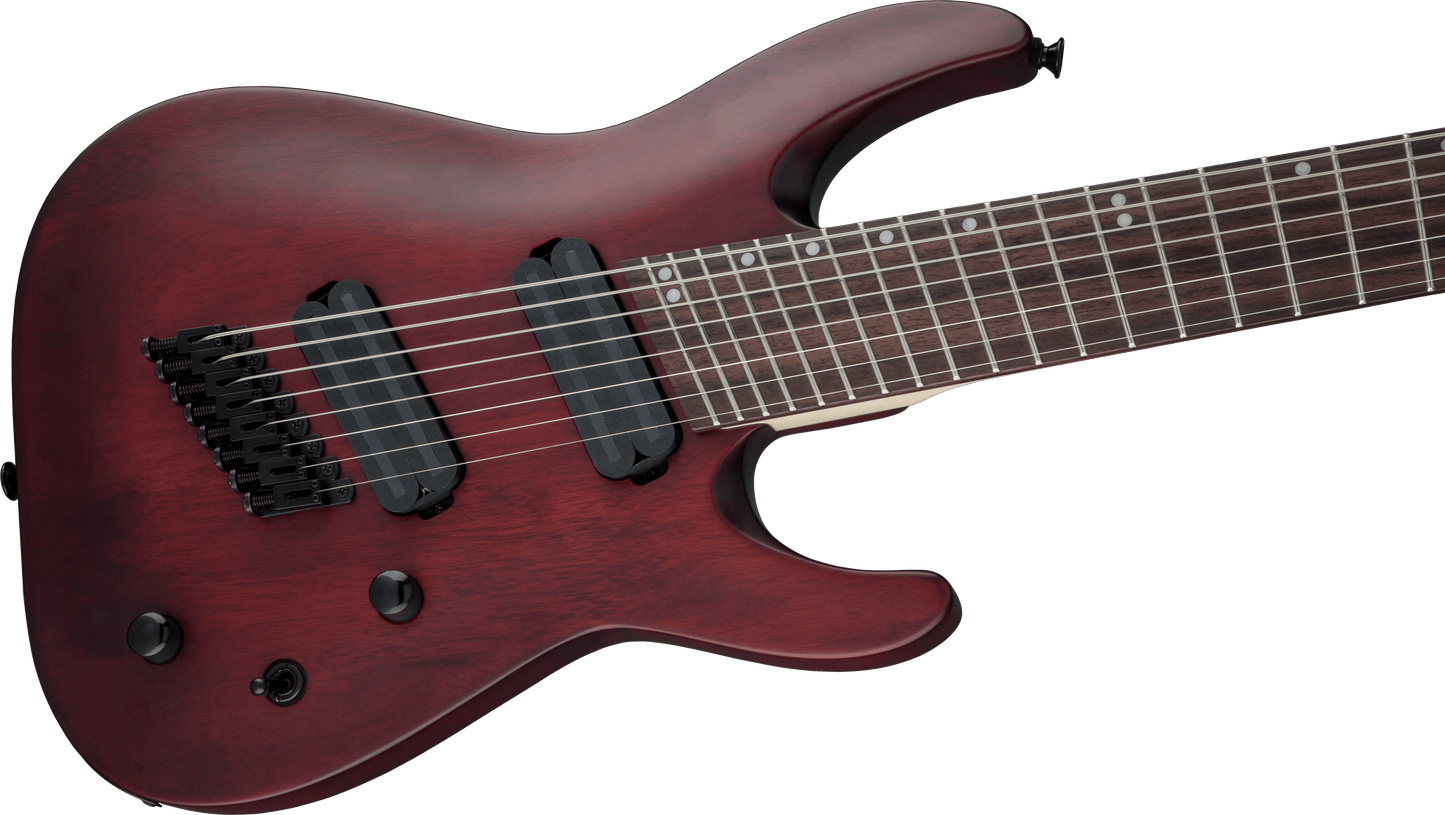

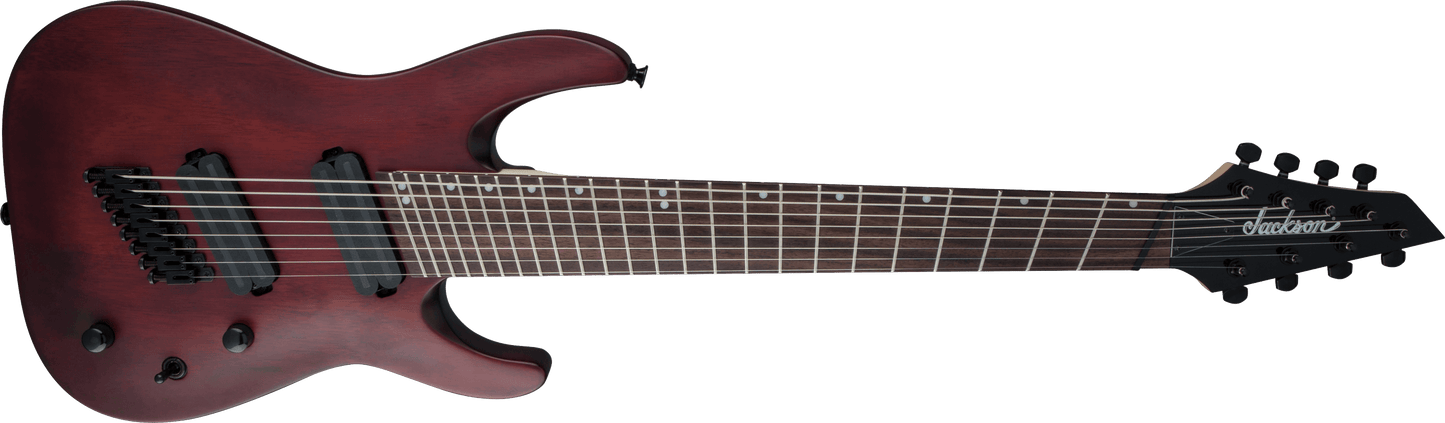

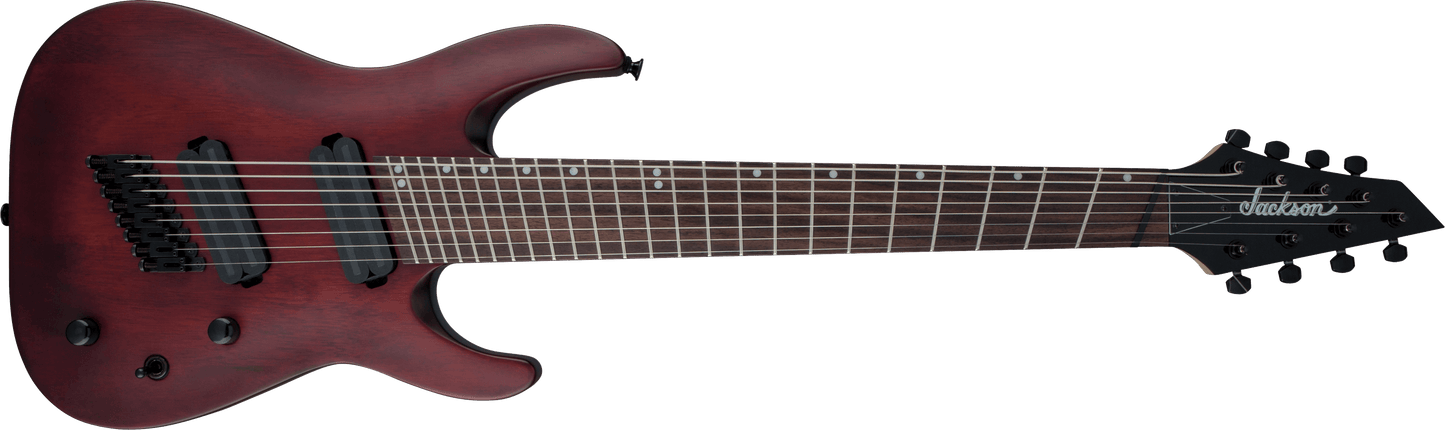

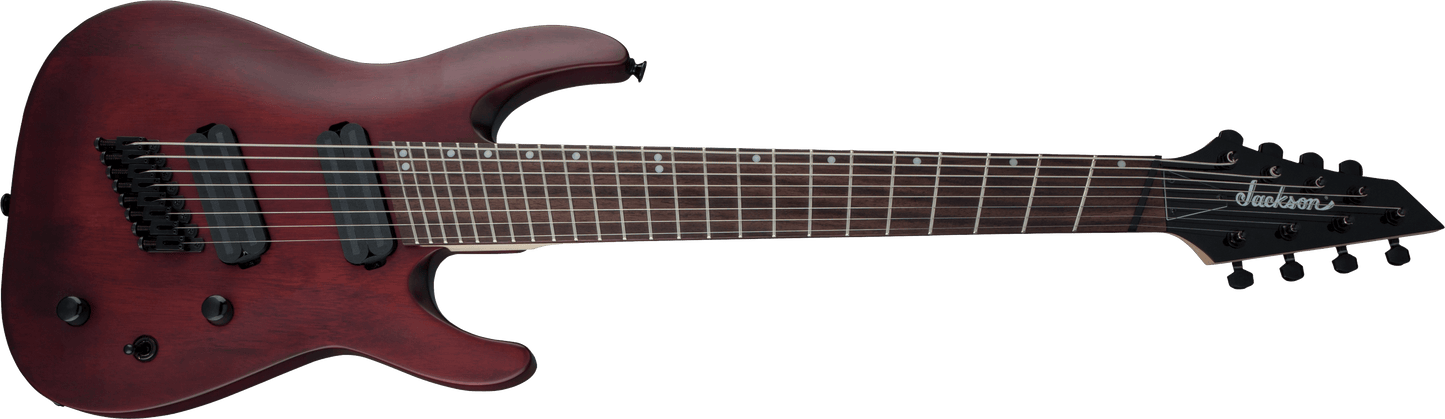

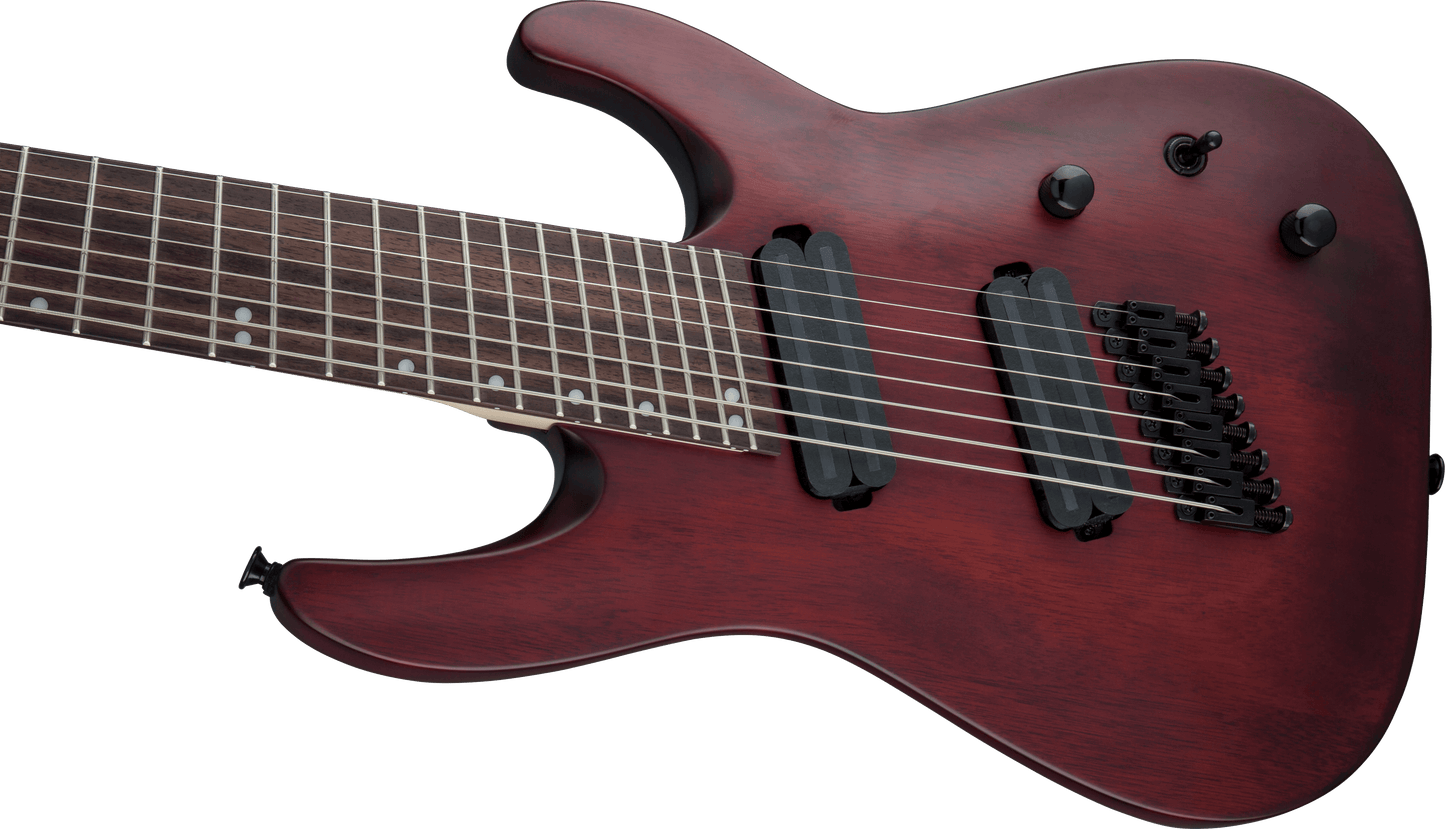

Shred in ergonomic comfort and style with the Jackson X Series Dinky® Arch Top DKAF8 MS. A high-performance evolution of the electric guitar, this 8-string multi-scale model unlocks the possibilities of an instrument by accommodating two scale lengths on one fingerboard, thus improving overall playing comfort while improving tension and intonation.
The DKAF8 MS features a 26"-28" multi-scale length, mahogany body with an arched top, one-piece bolt-on maple neck with graphite reinforcement and scarf joint, 12"-16" compound radius fingerboard with 24 jumbo frets and offset white dot inlays, Jackson die-cast tuners and 4x4 AT-1 headstock.

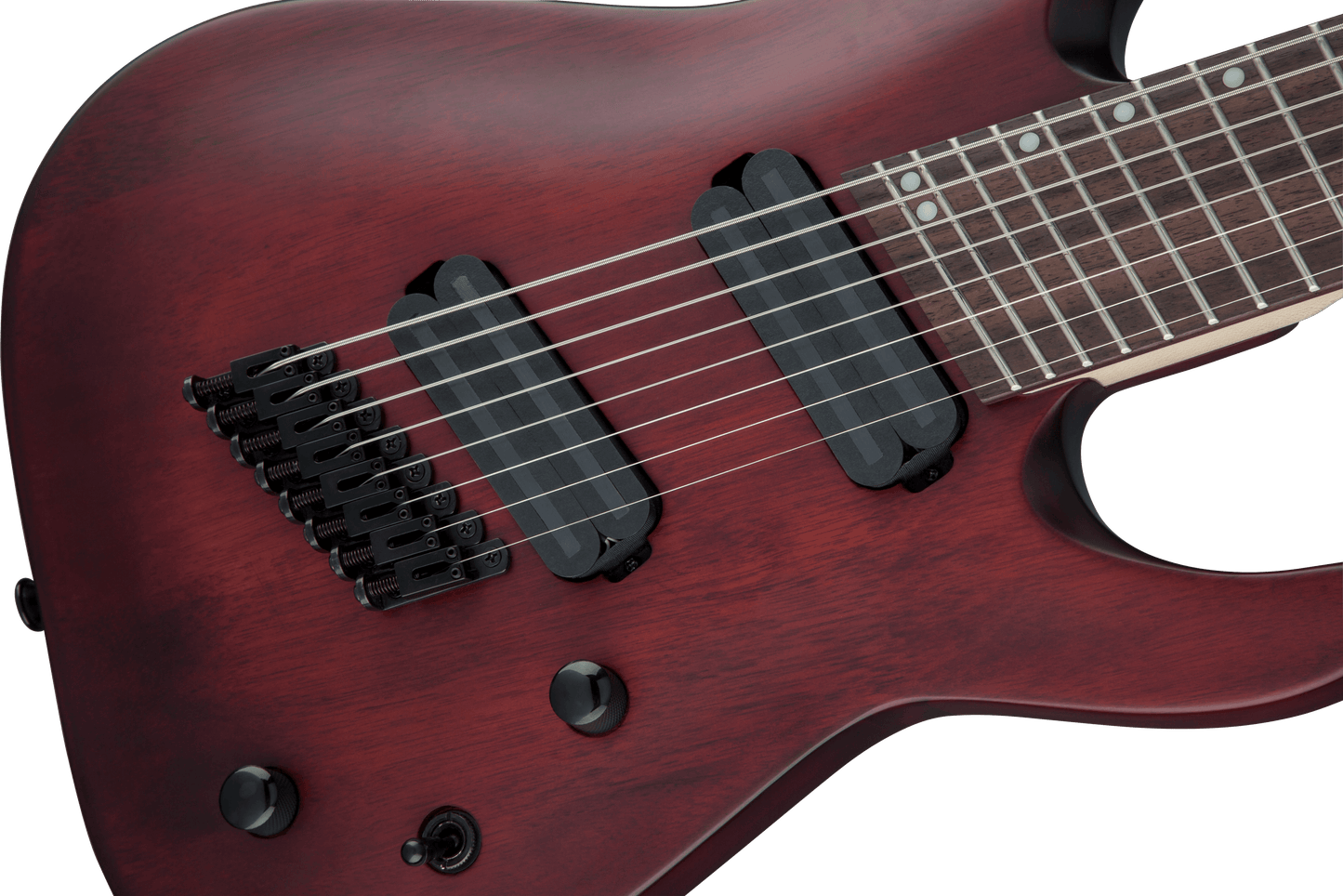

Dual Jackson uncovered 8-string blade humbucking pickups power this metal beast and can be shaped by a three-way toggle switch and single volume and tone controls.
To help improve intonation, the guitar has been equipped with Jackson designed individual bridge saddles, staggered to accommodate for the two scale lengths.
The DKAF8 MS is available in (NEW!) Gloss Black (laurel fingerboard) or Stained Mahogany (rosewood fingerboard) with black hardware.
Overview
Features
- 26"-28" scale
- Mahogany Dinky® body with arched top
- One-piece bolt-on maple neck with graphite reinforcement and scarf joint
- 12"-16" compound radius laurel fingerboard with 24 jumbo frets and offset white dot inlays
- Jackson® uncovered 8-string blade humbucking pickups
- Three-way toggle switch, single volume and single tone controls
- Staggered individual bridge saddles
- Available in Gloss Black with black hardware
- Jackson® 4x4 AT-1
Highlights
26" - 28" MULTI-SCALE LENGTH
Unlocks the possibilities of an instrument by accommodating two scale lengths on one fingerboard, thus improving overall playing comfort while improving tension and intonation.
ONE-PIECE BOLT-ON MAPLE NECK WITH GRAPHITE REINFORCEMENT AND SCARF JOINT
A type of neck constructed with a scarf joint for an angled back headstock, which in turn increases the tension behind the nut eliminating the need for string trees and/or string retainer bars. The bolt-on neck joins the neck to the body of the guitar with screws or bolts, allowing for more control, attack and sustain.
Specs
Body
Mahogany
Body Finish
Satin
Body Material
Mahogany
Body Shape
Dinky®
Bridge Pickup
Jackson® Uncovered 8-String Blade Humbucking
Controls
Volume, Tone
Neck Pickup
Jackson® Uncovered 8-String Blade Humbucking
Pickup Configuration
HH
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Color
Stained Mahogany
Orientation
Right-Hand
Product Name
X Series Dinky® Arch Top DKAF8 MS, Laurel Fingerboard, Multi-Scale, Stained Mahogany
Series
X
Bridge
Staggered Individual Saddles
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
4-Bolt (recessed screws)
Pickguard
None
Strap Buttons
Standard
Strings
Nickel Plated Steel (.010-.074 Gauges)
Switch Tip
Black

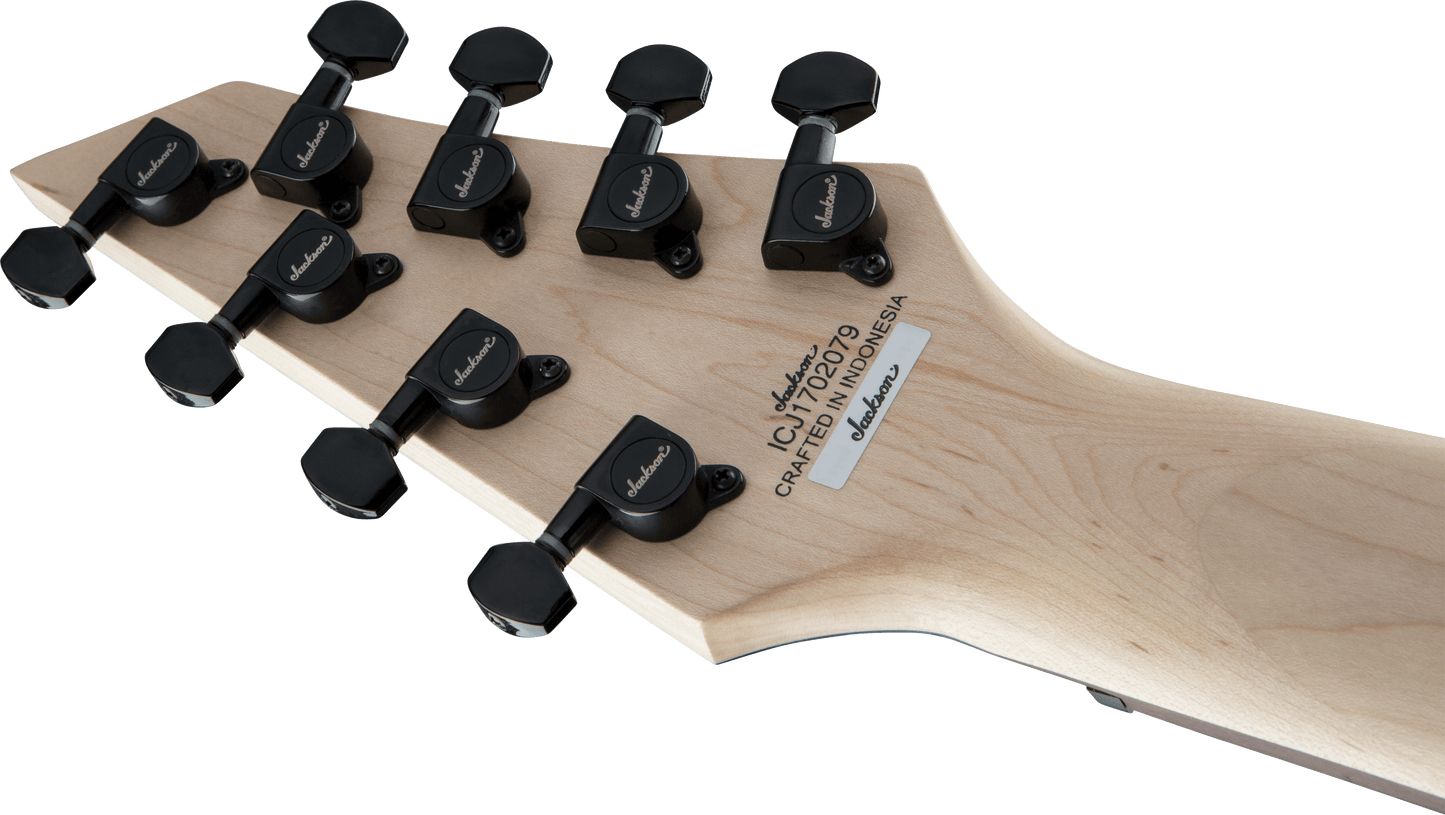

Tuning Machines
Jackson® Sealed Die-Cast
Fret Size
Jumbo
Scale Length
26" - 28" Multi-Scale (660 mm - 711 mm)
Fingerboard Material
Laurel
Fingerboard Radius
12"-16" Compound Radius (304.8 mm to 406.4 mm)

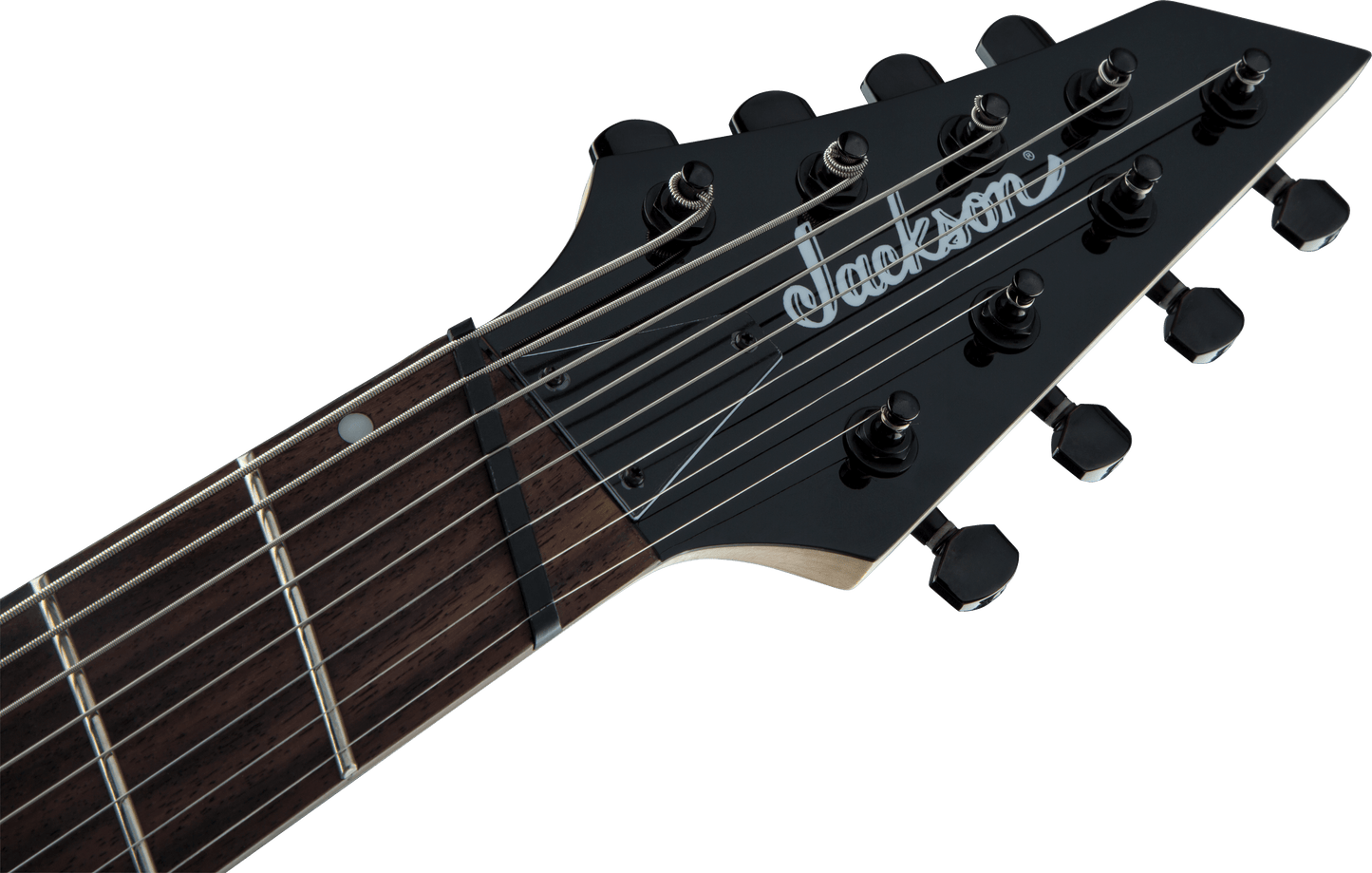

Headstock
Jackson® AT-1 4x4 (4 Over/4 Under)
Neck Binding
None
Neck Construction
Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish
Satin
Neck Material
Maple
Number of Frets
24
Nut Material
Black Plastic
Nut Width
2.165" (55 mm)
Position Inlays
Offset Pearloid Dot
String Nut
Black Plastic
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
Specs
Case/Gig Bag
Optional SLAT 7/8 String Gig Bag (p/n 299-1513-106)
Saddle Height Wrench
Yes
Truss Rod Wrench
Yes
Body
Mahogany
Body Finish
Gloss
Body Material
Mahogany
Body Shape
Dinky®
Bridge Pickup
Jackson® Uncovered 8-String Blade Humbucking
Controls
Volume, Tone
Neck Pickup
Jackson® Uncovered 8-String Blade Humbucking
Pickup Configuration
HH
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
Color
Gloss Black
Orientation
Right-Hand
Product Name
X Series Dinky® Arch Top DKAF8 MS, Laurel Fingerboard, Multi-Scale, Gloss Black
Series
X
Bridge
Staggered Individual Saddles
Control Knobs
Dome-Style
Hardware Finish
Black
Neck Plate
4-Bolt (recessed screws)
Pickguard
None
Pickup Covers
Black
Strap Buttons
Standard
Strings
Nickel Plated Steel (.010-.074 Gauges)
Switch Tip
Black
Tuning Machines
Jackson® Sealed Die-Cast
Fret Size
Jumbo
Scale Length
26" - 28" Multi-Scale (660 mm - 711 mm)
Fingerboard Material
Laurel
Fingerboard Radius
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Headstock
Jackson® AT-1 4x4 (4 Over/4 Under)
Neck Binding
None
Neck Construction
Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish
Satin
Neck Material
Maple
Number of Frets
24
Nut Material
Black Plastic
Nut Width
2.165" (55 mm)
Position Inlays
Offset Pearloid Dot
String Nut
Black Plastic
Truss Rod
Dual-Action
Truss Rod Nut
Truss Rod Adjustment at Nut
